GTR Series Tiltrotator

360° Rotation · ±45° Tilt · Quick Change
For Excavators 0-28 Tons.
China's pioneer in tiltrotator technology. Patent holder. Industry standard setter. 25 years of hydraulic innovation.

Request a Quote → View All Models Download CE Certificate (PDF)
✓ Exported to Europe
✓ CE Certified — Verify PDF →
✓ FOB Shanghai
✓ 45-60 Day Lead Time
24h Quote Response 12-Month Warranty Trackable International Logistics OEM/ODM Support
Why You Need a Tiltrotator

Stop Fighting Your Excavator. Start Working With It.

Standard bucket configurations force crews to reposition the entire machine for every angle change. That wastes fuel, time, and ground.

Limited Reach

Standard buckets only dig straight lines. Slopes, ditches, and angled cuts require constant machine repositioning — wasting fuel, time, and damaging the ground.

Time Lost Repositioning

Constantly moving the machine to change the attack angle wastes fuel and slows productivity. Every reposition is money lost on the jobsite.

Manual Labor & Safety Risk

Changing attachments by hand is dangerous and slow. Operators climb out of the cab, expose themselves to hazards, and lose 15-30 minutes per swap.

The Solution

GTR Hydraulic Wrist — The Solution

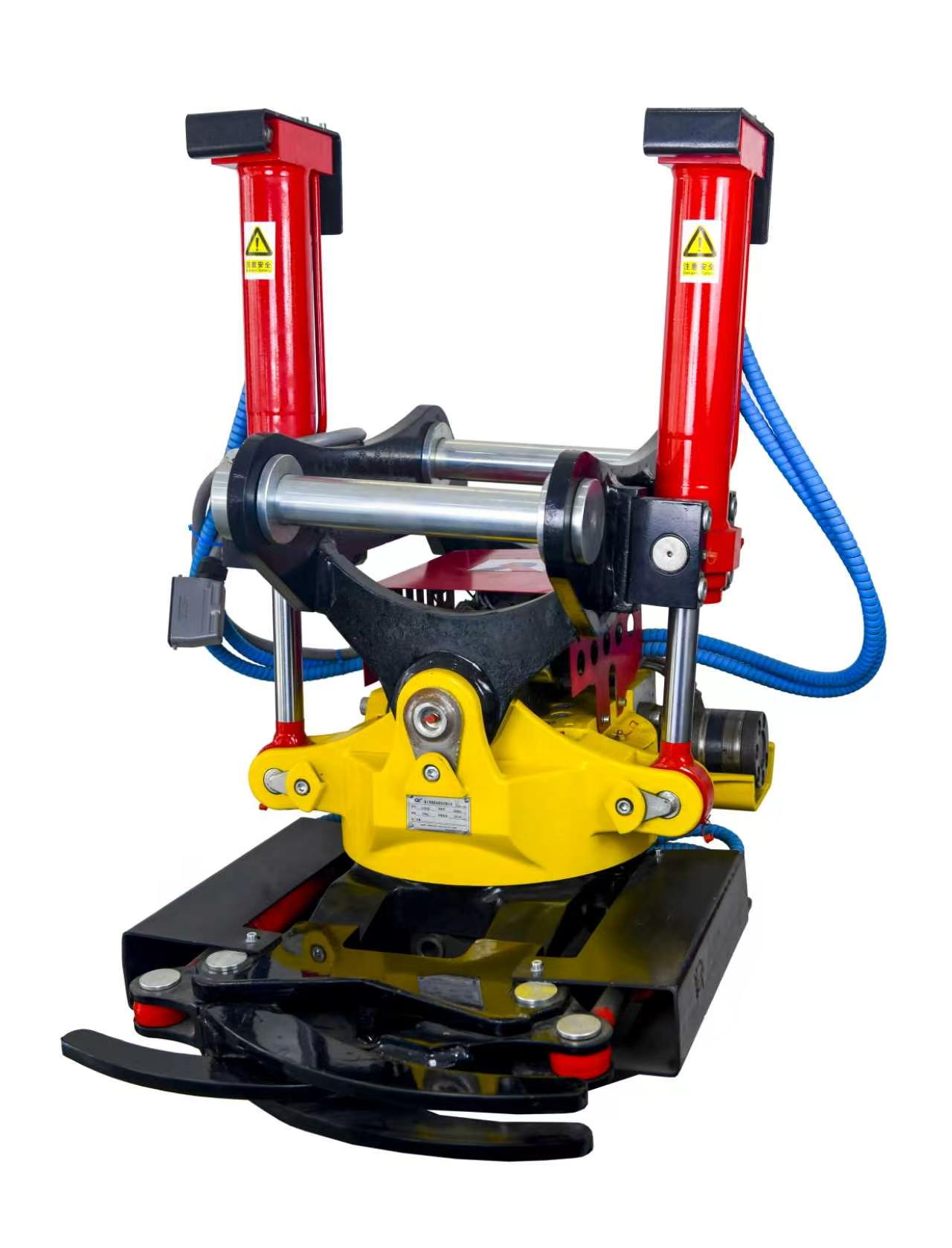

GTR-60 Tiltrotator
  • ↻

    360° Continuous Rotation

    Drive attachments to rotate a full 360° without limitation. Reach any working angle without repositioning your excavator — saving fuel, time, and ground damage.

    7-second full rotation
  • ↕

    ±45° Left-Right Tilt

    Swing attachments ±45° to adapt to slopes, trenches, and uneven terrain. Work safely on inclines and in confined spaces that standard buckets simply cannot reach.

    5-second full sweep
  • ⚡

    Quick Attachment Change

    Switch between bucket, breaker, shear, grapple, compactor, and drill in seconds — without leaving the cab. Maximize uptime and operator safety.

    7+ attachment types
Optional
Automatic Hydraulic Oil Circuit Connection
L-Series: Auto oil-line connection for seamless attachment operation — no manual plugging required.
Product Lineup

GTR Series — Choose Your Model

Six models covering 0 to 28 ton excavators. Cast steel housing for superior impact resistance. Find the perfect match for your machine.

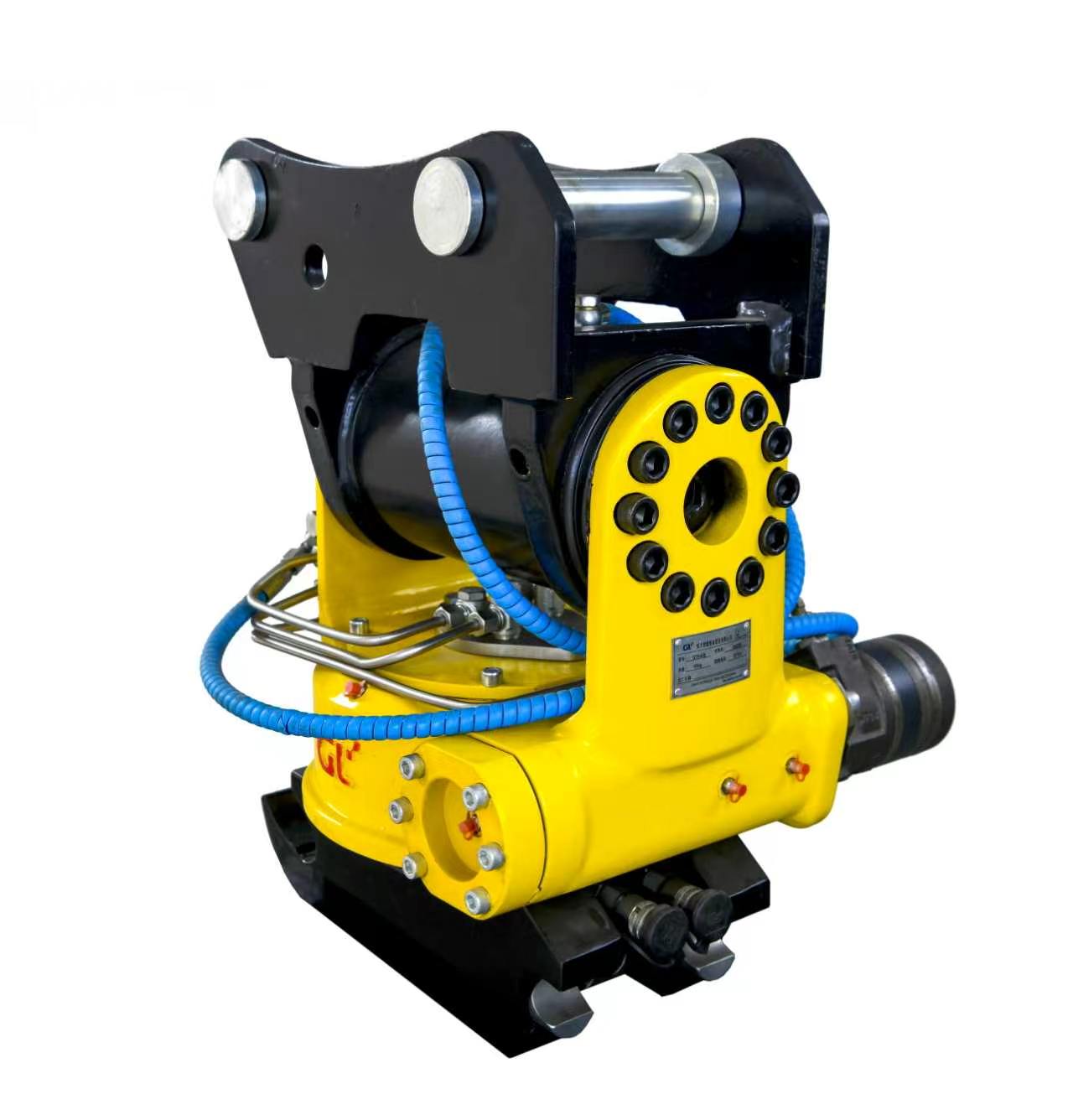

GTR-30 Tiltrotator for 0.0-3.0 ton excavator
GTR-30
0.0-3.0t Excavator
Weight
95 kg
Rotation Torque
1,500 N·m
Tilt Torque
5,500 N·m
Pin Diameter
30 mm
GTR-40 Tiltrotator for 3.0-7.0 ton excavator
GTR-40
3.0-7.0t Excavator
Weight
185 kg
Rotation Torque
14,000 N·m
Tilt Torque
11,000 N·m
Pin Diameter
40 mm

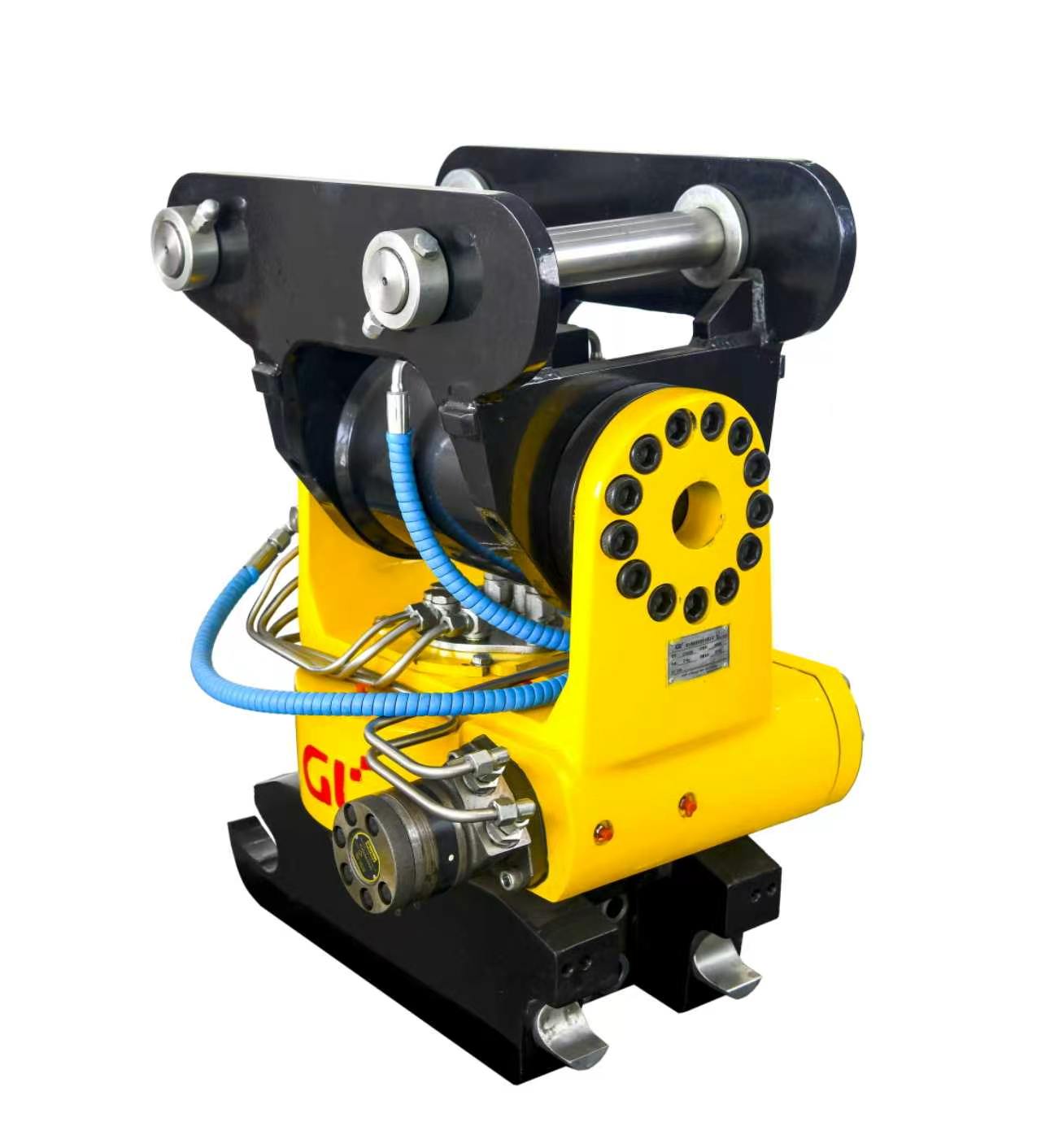

GTR-50 Tiltrotator for 7.0-12.0 ton excavator
GTR-50
7.0-12.0t Excavator
Weight
330 kg
Rotation Torque
11,000 N·m
Tilt Torque
24,000 N·m
Pin Diameter
50 mm
GTR-60 Tiltrotator for 12.0-16.0 ton excavator
GTR-60
12.0-16.0t Excavator
Weight
515 kg
Rotation Torque
19,000 N·m
Tilt Torque
27,000 N·m
Pin Diameter
60 mm

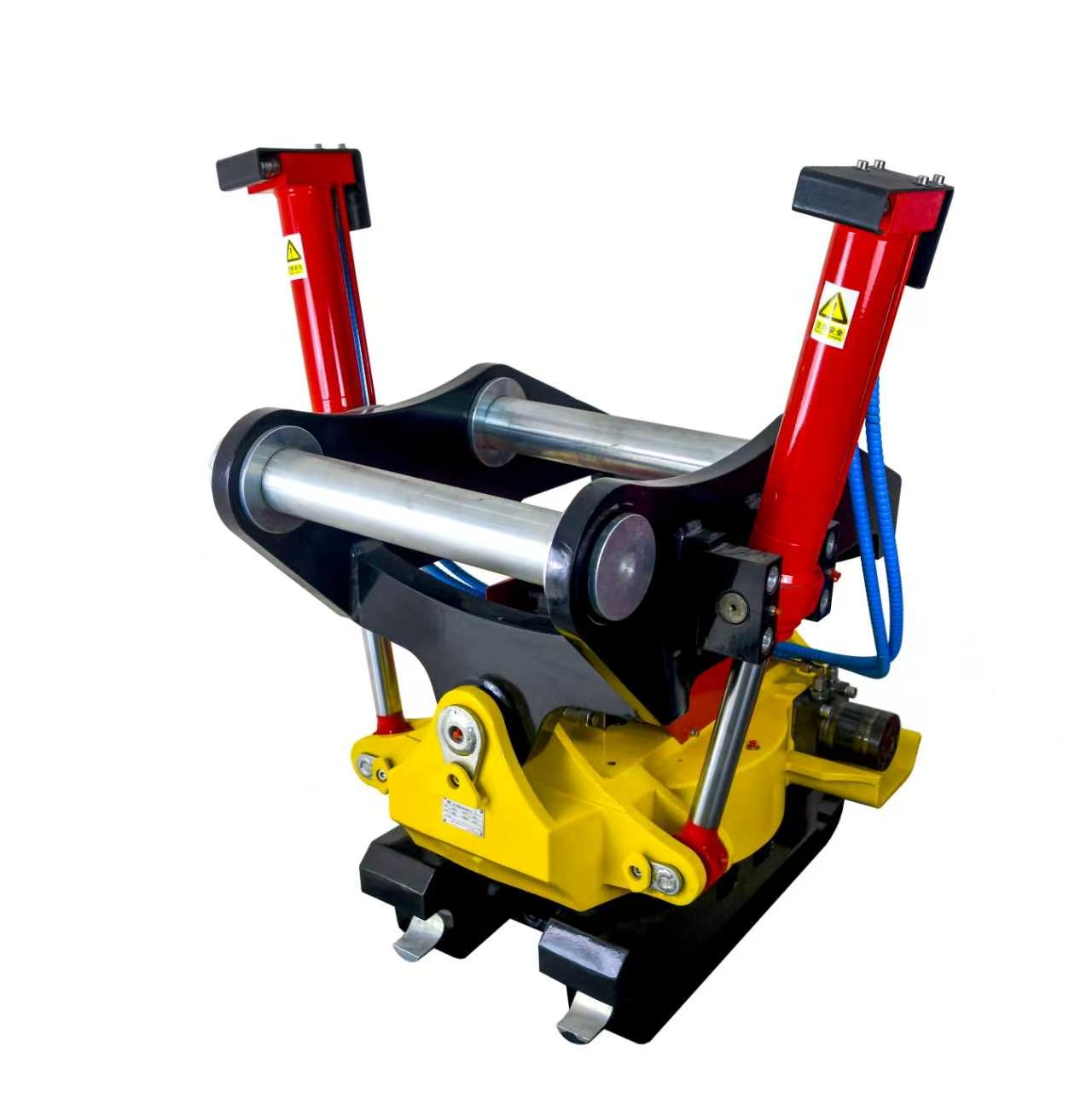

GTR-70 Tiltrotator for 16.0-22.0 ton excavator
GTR-70
16.0-22.0t Excavator
Weight
780 kg
Rotation Torque
28,000 N·m
Tilt Torque
26,000 N·m
Pin Diameter
70 mm

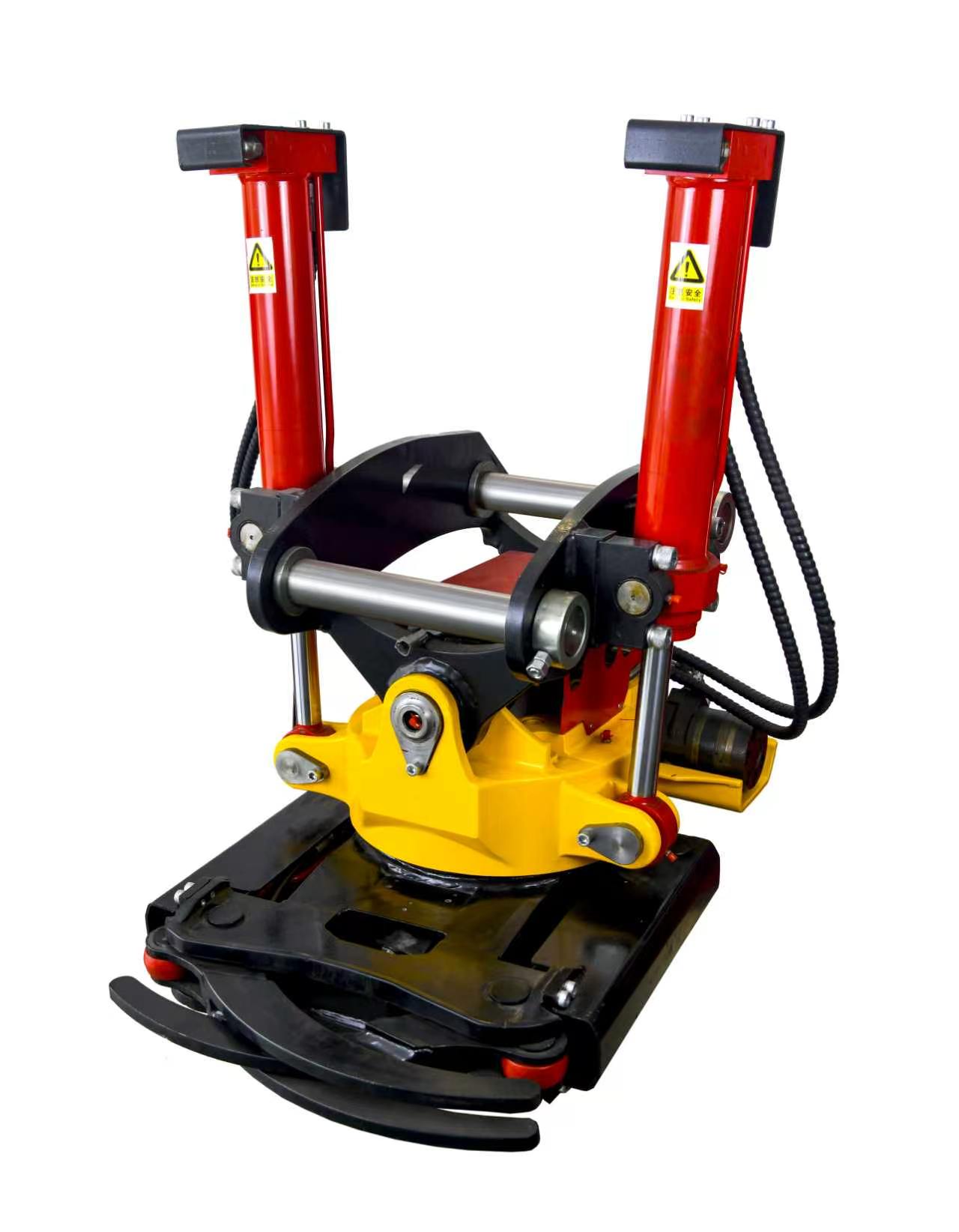

GTR-80 Tiltrotator for 22.0-28.0 ton excavator
GTR-80
22.0-28.0t Excavator
Weight
840 kg
Rotation Torque
30,000 N·m
Tilt Torque
35,000 N·m
Pin Diameter
80 mm
View Full Specifications ↓
Versatility

One Wrist, Unlimited Possibilities

GTR tiltrotator connects to any attachment with a compatible coupler. Turn your single-purpose excavator into a multi-tool powerhouse.

⚙
Bucket
⚙
Hydraulic Breaker
⚙
Hydraulic Shear
⚙
Grapple
⚙
Compactor
⚙
Drill
Selection Tool

Find Your GTR Model

Enter your excavator weight to get a model recommendation.

Built for Real-World Challenges

One Wrist, Every Worksite

From municipal trenching to mine-face work, GTR-equipped excavators replace multiple specialty machines on a single job.

Municipal & Trenching

Pipe laying, ditch grading, landscaping — precision bucket angles reduce manual finishing work.

RECOMMENDED: GTR-40 / 50

Selective Demolition

Pair with hydraulic breakers, shears, and grapples. Work inside buildings and around live utilities.

RECOMMENDED: GTR-60 / 70

Mining & Quarrying

Stable slope work and precision breaking with high-flow hydraulics matched to your carrier.

RECOMMENDED: GTR-70 / 80

Rescue & Emergency

Quick switching between bucket, grapple, and breaker in collapsed-structure scenarios.

RECOMMENDED: GTR-60 / 70
Technical Data

GTR Series Technical Specifications

Complete parameter table based on official data. All models feature cast steel housing, 360° rotation, ±45° tilt, and quick-change coupler.

ParameterGTR-30GTR-40GTR-50GTR-60GTR-70GTR-80
Excavator Range (t)0.0-3.03.0-7.07.0-12.012.0-16.016.0-22.022.0-28.0
Pin Diameter (mm)304050607080
Work Pressure (MPa)18.0-21.018.0-21.018.0-21.018.0-21.018.0-21.018.0-21.0
Work Flow (L/min)15-3020-4040-6060-8080-120120-140
Max Circuit Pressure (MPa)2.52.52.52.52.52.5
Coupler ThreadG1/4G1/4G1/2G1/2G3/4G3/4
Weight (kg)95185330515780840
Rotation Torque (N·m)1,50014,00011,00019,00028,00030,000
Axial Load (kN)14.563120180220260
Rotation Angle±360°±360°±360°±360°±360°±360°
Rotation Time (s)777777
Rotation Flow (L/min)20-2425-4040-5060-8070-8080-110
Tilt Torque (N·m)5,50011,00024,00027,00026,00035,000
Tilt Angle±45°±45°±45°±45°±45°±45°
Tilt Time (s)555555
Tilt Flow (L/min)7-207.5-2019-4021-4040-4845-60
Housing MaterialCast SteelCast SteelCast SteelCast SteelCast SteelCast Steel
Request Spec Sheet & CAD Files →
Why GIANT

China's Pioneer in Tiltrotator Technology

While competitors rely on imported technology, GIANT independently developed the control system hardware and software — full technology autonomy.
Trade Show

BICES 2023 Highlight

20+ Partnerships Formed

GTR Series tiltrotators attracted overwhelming attention at BICES 2023, with over 20 cooperation intentions signed during the 3-day exhibition.

BICES 2023 BICES 2023 BICES 2023
